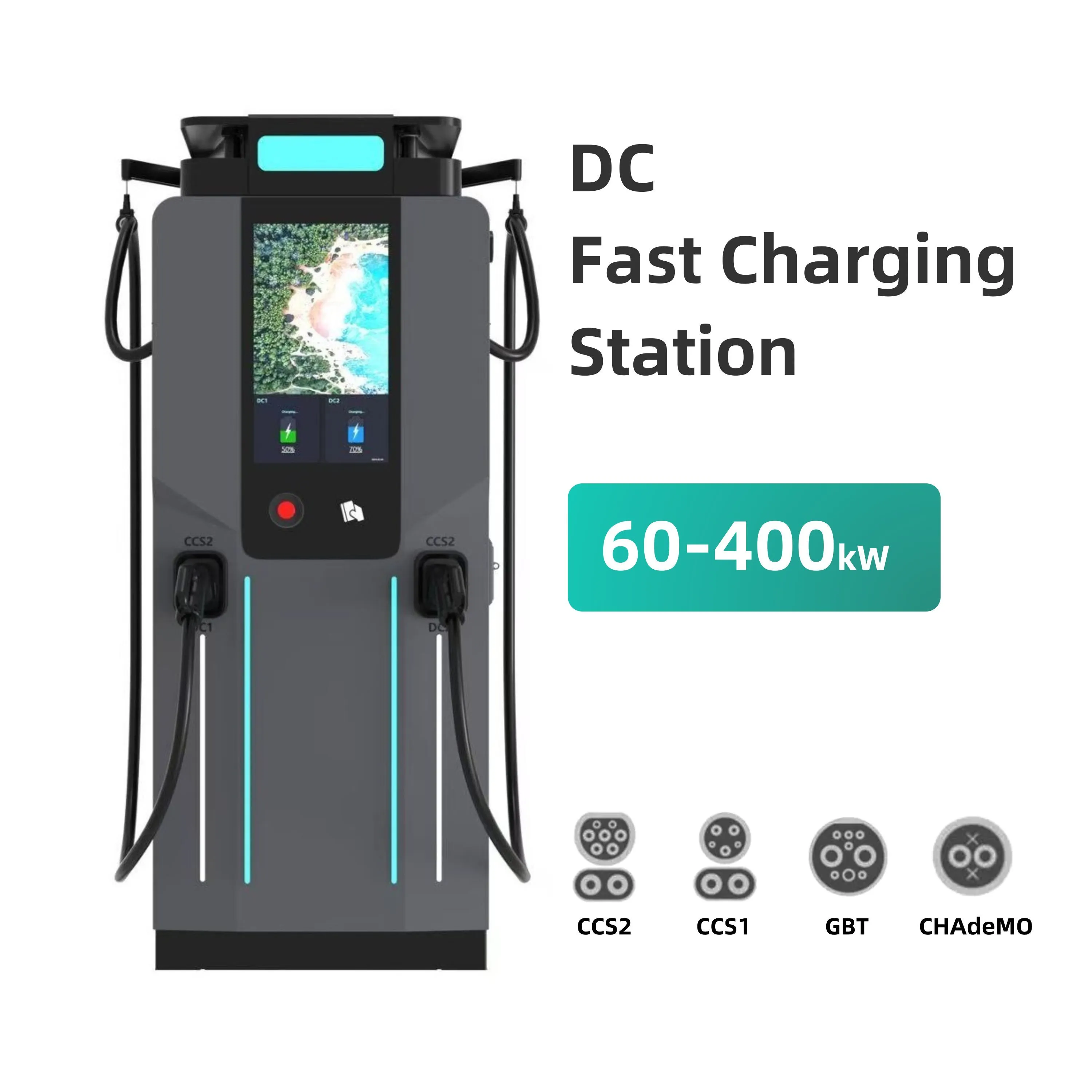

High-Power DC Fast Charging Station with Output Ranging From 60kW to 400kW, Designed for Efficient and Rapid EV Charging
The integrated DC charger main control is self-developed and can support a mixed composition of different interfaces such as CCS1, CCS2, CHAdeMO, GBT, It adopts an IP65 ultra-high protection level power module and can operate stably for a long time in harsh environments with high levels of dust, metal dust, and humidity; The modular design of the charger makes maintenance and testing more convenient, with more reliable quality and smaller size. SIC silicon carbide charging module has an efficiency of 97%, significantly reducing the cost of operating more stations, Widely applicable to high-power charging scenarios such as buses, mining trucks, logistics vehicles, mixer trucks, sanitation vehicles, etc.
● Optional CCS1/CCS2/CHAdeMO/GBT standards
● OCPP 1.6/2.01 Json
● IP55 ingress protection(body)
● CE Certified
Features
Minimalistic
- Compact, slimline enclosure
- High energy-saving ECO mode
- Compatible with 60kW~400kW
Intelligent
- Ethernet/4G
- OCPP 1.6 Json
- Dynamic load balancing
- Meet the OTA remote upgrade function
Select
- App operation/RFID/POS
- 12.1 inch screen for option
- Optional CCS1/CCS2/CHAdeMO/GBT standards
Safety Protection
- IP55 ingress protection (body)
- Modular design, easy to repair and replace
- IK10 impact protection
parameter
|
Models |
60kW | 80kW | 120kW | 150kW | 180kW | 240kW | 320kW | 360kW |
400kW |
|
AC input Power |
115A, 400V | 155A, 400V | 182A, 400V | 228A, 400V | 274A, 400V | 365A,400V | 486A,400V | 547A,400V |
608A, 400V |
|
Input Voltage Range |
3P + N + PE |
||||||||
|
Cable Length |
5 meters or customized |
||||||||
|
Max. Current- CCS |
200A |
250A |
300A |
300A/500A |
|||||
|
Max. Current-CHAdeMO |
125A | ||||||||
|
Max. Current- GBT |
200A |
250A |
250A |
300A |
300A |
400A/500A |
400A/500A |
||
|
Max Output Current |
CCS 300A,GBT 250A,CHAdeMO 125A |
||||||||
|
Distribution System |
TN-S, TN-C, TN-C-S, TT (External RCD Required) | ||||||||
|
Protection |
Overcurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection |
||||||||
|
IK Rating |
IK10 |
||||||||
|
Operating Temperature |
-20°C to + 55°C |
||||||||
|
Connectivity |
Internet access via 4G/3G/Ethernet (RJ45) |
||||||||
|
User Authentication |
RFID(ISO/IEC 14443 A/B Mifare RFID reader), QR code |
||||||||
|
User Interface |
12.1 inch LCD high-contrast touchscreen |
||||||||
|
Connectivity Authorization |
RFID,APP,POS |
||||||||
|
Communication Protocols |
Proprietary and OCPP 1.6J/2.0 |
||||||||
|
Emergency Button |
Yes |
||||||||
|
Protection Rating |
P55 and IK10 (cabinet) / IK08 (touchscreen) |
||||||||
|
Dimensions (mm) |
600*700*1800mm |
||||||||
|
Net Weight (kg) |
≤325kg |
≤425kg |
≤455kg |
≤475kg |
565kg |
575kg |
|||
product Display
