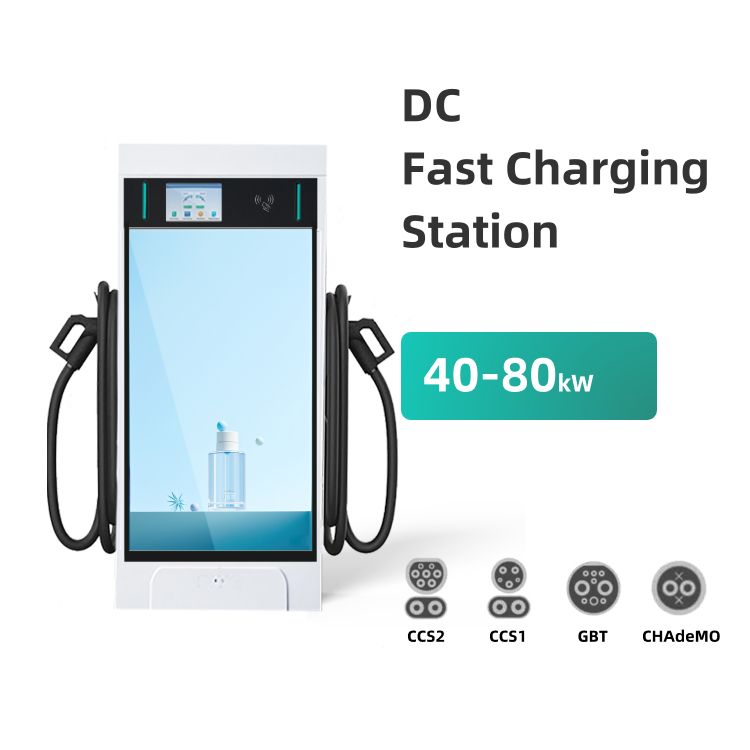

Ultra - Fast Charging: Turbo - Boost Your Charge with Captivating Ad Display
The DC fast chargers provide 40kW, 60kW, and 80kW power options, supporting CCS-1/CCS-2/CHAdeMO/GBT standards. Designed for efficiency, safety, and intelligence, they meet diverse charging demands in public stations, commercial parking lots, and fleet operations.Equipped with a 7-inch color touchscreen, the chargers offer intuitive user interaction and support card, App, and manual operation. With three charging modes (Networked, Stand-alone, and Portable), they flexibly adapt to various application scenarios. Compliance with international protocols (ISO 15118, GBT 27930, CHAdeMO 2.0, etc.) ensures broad compatibility and reliable performance.
● Optional CCS1/CCS2/CHAdeMO/GBT standards
● OCPP 1.6/2.01 Json
● IP55 ingress protection(body)
● CE Certified
Features
Minimalistic
- Compact, slimline enclosure
- High energy-saving ECO mode
- Compatible with 40kW~80kW
Intelligent
- Ethernet/4G
- OCPP 1.6/2.01 Json
- Dynamic load balancing
Select
- App operation and RFID
- Intelligent operation by App and cashless payment
- Optional CCS1/CCS2/CHAdeMO/GBT standards
Safety Protection
- Full production
- IP55 ingress protection
- IK10 impact protection
parameter
|
Output Power |
40KW |
60KW |
80KW |
|
Output Current |
0-133A |
0-200A |
0-250A |
|
Output Voltage |
200-750V(200-1000v optional) |
||
|
Frequency |
50/60 Hz |
||
|
Input Current |
0-64A |
0-116A |
0-134A |
|
Input Voltage |
AC380V士20% |
||
|
Gun Quantity |
ONE/TWO (CCS-1/CCS-2/CHAdeMO/GBT) |
||
|
Charging Way |
Quick or Slow charge automatic switch |
||
|
Charging Mode |
SWIPECARD, APP, MANUAL |
||
|
Display |
7'' Touch screen |
||
|
Network Connection |
Standard configuration: CAN/485/ Ethernet; Selective configuration: GPRS/4G |
||
|
Dimension(cm) |
69*135*24 |
77*155*30 |
|
|
Weight |
147KG |
157KG |
210KG |
|
Operating Temperature |
-20℃ to +50℃ |
||
|
Altitude |
≤2000M |
||
|
IP Level |
IP54 |
||
|
Working Relative Humidity |
RH≤95% |
||
|
Input Cable Length |
0M(customization Acceptable) |
||
|
Gun Cable Length |
5M(Customization Acceptable) |
||
|
Interface Standard |
CCS CHADEMO GB/T |
||
|
Charging Protocol |
GBT27930/ CHADEM0 2.0/ DIN 701210CPP 1.6(|SON)I50 15118 |
||
product Display
