Xupernova Movable Dc Ev Charger 40kw Rescue Use Portable Ev Charger Easy Handle Ev Charging Station Charging for Car Ccs2
The DC Fast Charger is designed to deliver reliable, efficient, and intelligent charging solutions for electric vehicles in diverse applications such as public charging stations, commercial complexes, and fleet depots. With power options ranging from 7kW to 40kW, the series offers flexibility to meet different operational demands.Built with advanced safety protections and high compatibility, the DC Fast chargers support multiple charging standards (CCS, CHAdeMO, GB/T) and comply with international protocols like ISO 15118, GBT 27930, and CHAdeMO 2.0. The 5-inch color display ensures intuitive user interaction, while flexible charging modes (Network, Stand-alone, and Portable) make it adaptable to various environments.The unit combines 95% efficiency, IP54 protection, and smart communication options (Ethernet, CAN/485, optional 4G/WiFi), making it a durable and future-proof choice for EV charging infrastructure.
● Optional CCS1/CCS2/CHAdeMO/GBT standards
● OCPP 1.6/2.01 Json
● 7kW / 15kW / 20kW / 30kW / 40kW
● CE Certified
Features
Minimalistic
-
Compact design, small footprint
-
5-inch color display, intuitive interface
-
High efficiency up to 95%, PF >0.99
-
Flexible power options: 7kW / 15kW / 20kW / 30kW / 40kW
Intelligent
-
Ethernet / RS485, optional 4G / WiFi
-
Supports OCPP 1.6 (JSON), ISO 15118, CHAdeMO 2.0, GBT 27930
-
Dynamic load balancing for optimized energy distribution
-
Remote monitoring, smart billing, and OTA upgrade
Select
-
Multiple operation methods: App / RFID / Manual
-
Customizable connectors: CCS1 / CCS2 / CHAdeMO / GB/T
-
Network / Stand-alone / Portable charging modes
-
Optional extended cable lengths (up to 5m)
Safety Protection
-
IP54-rated enclosure, suitable for outdoor use
-
-20°C to +50°C wide temperature operation
-
Built-in protections: OVP, OCP, SCP, leakage, insulation monitoring
-
Modular design for easy maintenance and replacement
parameter
|
Output Power |
7kW | 15kW | 20kW | 30kW | 40kW |
|
Output Current |
20A | 37A | 60A | 100A | 133A |
|
Input Current |
32A | 25A | 32A | 45A | 64A |
|
Output Voltage |
200-750V(200-1000V optional) |
||||
|
Input Voltage |
90-265V |
260-475V | |||
|
Input Connection |
L+N+PE |
3P+N+PE | |||
|
Frequency |
50/60Hz | ||||
|
Power Factor |
>099@rated voltage | ||||
|
Efficency |
95% |
||||
|
Display |
5" Touch Screen | ||||
|
Dimension(cm) |
42*22*65 |
50*23*70 |
60*27*83 |
||
|
Weight |
20KG |
30KG |
44KG |
56KG |
70KG |
|
Operating Temperature |
-20°C to + 55°C |
||||
|
Working Realtive Humidity |
RH≤95% |
||||
|
Altitude |
2000M |
||||
|
IP Level |
IP54 |
||||
|
Input Cable Length |
0M(Customization Acceptable) |
||||
|
Gun Cable Length |
3M/5M(Customization Acceptable) |
||||
|
Interface Standard |
CCS CHADEMO GB/T |
||||
|
Charging Protocol |
GBT27930/CHADEMO 2.0/ DIN 701210CPP 1.6 (JSON)ISO 15118 |
||||

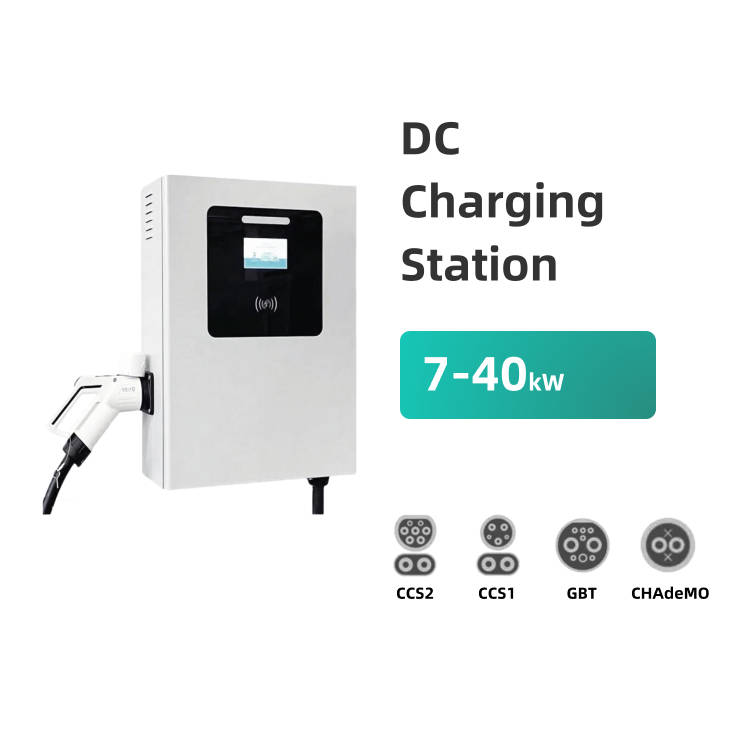

product Display
