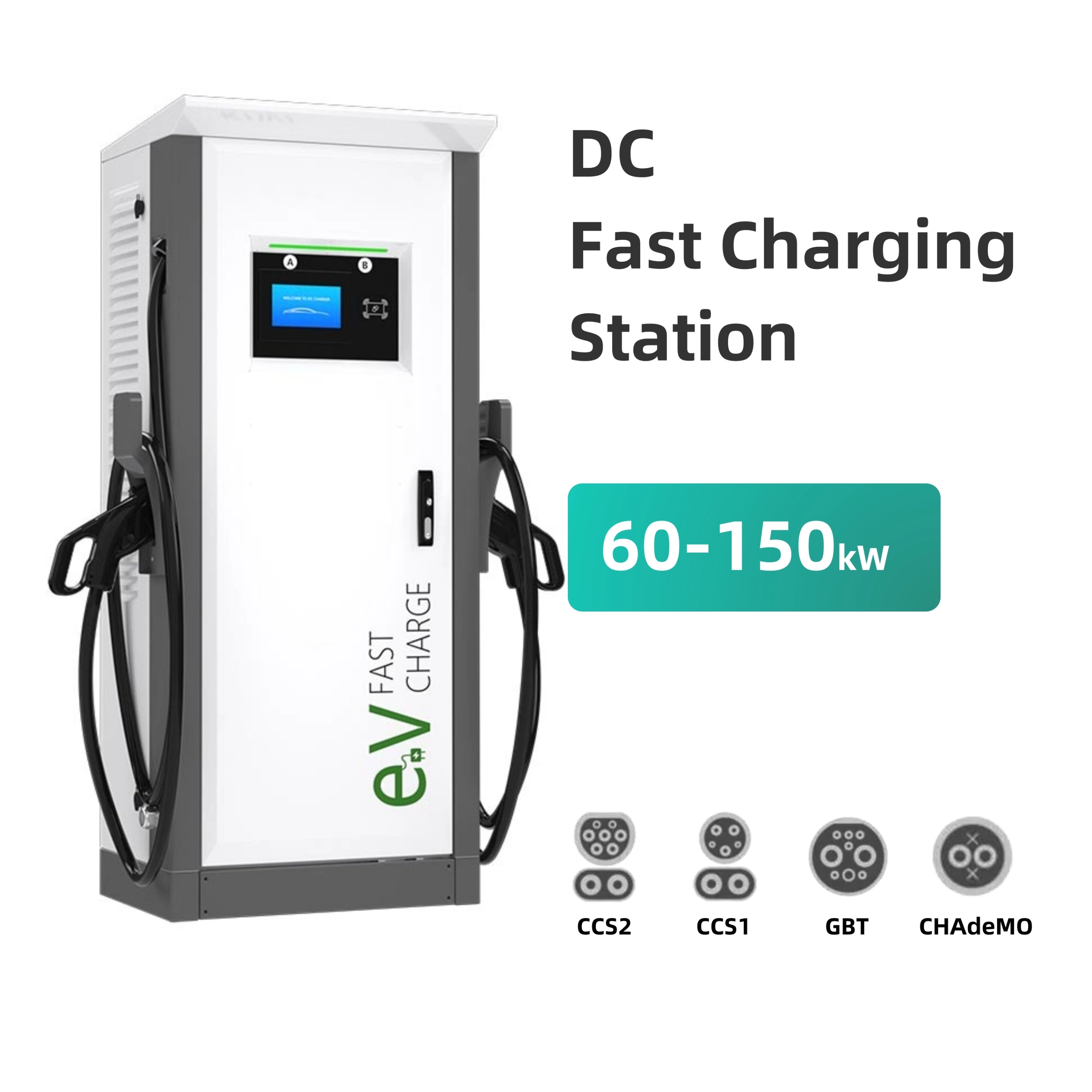

CCS1/CCS2/GBT Floor Stand New Car Station Dual Gun Ocpp 60kW-150kW DC Electric Vehicle Charging Station EV DC Fast Charger
The new generation of adhesive filled epoxy resin technology for integrated DC charging piles can withstand harsher dust and salt alkali environments, with lower after-sales costs; High energy-saving ECO mode, no vehicle charging, charging station enters sleep mode, more energy-efficient; Adopting a modular design approach with smaller dimensions; Excellent performance in product heat dissipation and low noise, automatically adjusting the night low noise mode to reduce noise pollution and minimize noise.
● Optional CCS1/CCS2/CHAdeMO/GBT standards
● OCPP 1.6/2.01 Json
● IP55 ingress protection(body)
● CE Certified
Features
Minimalistic
- Compact, slimline enclosure
- High energy-saving ECO mode
- Compatible with 60kW~150kW
Intelligent
- Ethernet/4G
- OCPP 1.6/2.01 Json
- Dynamic load balancing
- Meet the OTA remote upgrade function
Select
- App operation and RFID
- Intelligent operation by App and cashless payment
- Optional CCS1/CCS2/CHAdeMO/GBT standards
Safety Protection
- 9 safety protection measures
- IP55 ingress protection (body)
- Modular design, easy to repair and replace
- IK10 impact protection
parameter
|
Models |
kW-60S |
kW-80S |
kW-120S |
kW-150S |
|
|
Rated Power |
115A,400V |
155A,400V |
182A,400V |
228A,400V |
|
|
Charging Outlets |
CCS1/CCS2/GBT/CHAdeMO |
||||
|
Distribution Systems |
TN-S. TN-C, TN-C-S, TT (required external RCD) |
||||
|
Connector Type |
3P + N + PE |
||||
|
Protection |
Overcurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection |
||||
|
Power Factor (Full Load) |
≥0.98 |
||||
|
Standby Power |
≤5% |
||||
|
Efficiency |
95.5% (peak) | ||||
|
Standby Power |
<36W |
||||
|
Short Circuit Current |
10 kA |
||||
|
Pre-charge Current |
<1A |
||||
|
Inrush Current |
<55A |
||||
|
Leakage Current |
0.8mA |
||||
|
Energy Metering |
Standard: Meter for DC outlet, Optional: AC inlet |
||||
|
Cellular Communication |
GSM, 4G, LTE |
||||
|
Connectivity |
Internet access via 4G/3G/Ethernet (RJ45) |
||||
|
User Authentication |
RFID, QR code |
||||
|
User Interface |
7 inch LCD high-contrast touchscreen |
||||
|
Communiation Protocols |
Proprietary and OCPP 1.6J/2.0 | ||||
|
RFID Reader |
ISO/IEC 14443 A/B Mifare RFID reader |
||||
|
Emergency Button |
Yes |
||||
|
Language System |
English, Chinese or Customized |
||||
|
Protection Rating |
IP55 and IK10 (cabinet) / IK08 (touchscreen) |
||||
|
Operating Altitude |
≤ 2000m |
||||
|
Operating Temperature |
-20 °C to 55 °C |
||||
|
Storage Temperature |
-40 °C to 70 °C |
||||
|
Humidity |
< 95%, non-condensing |
||||
|
Mounting |
Free-standing cabinet |
||||
|
Dimensions (mm) |
545*705*1675mm |
||||
|
Net Weight (kg) |
≤258kg |
≤285kg |
≤325kg |
||
|
Codes & Standards |
IEC 61851-21-2, IEC 61000, IEC/EN 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, GBT18487, GBT20234, NB/T 33008.1, NB/T 33001 |
||||
|
Communication to the EV |
DIN 70121, ISO/IEC 15118, GBT27930, GBT 34657, GBT 34658 |
||||
