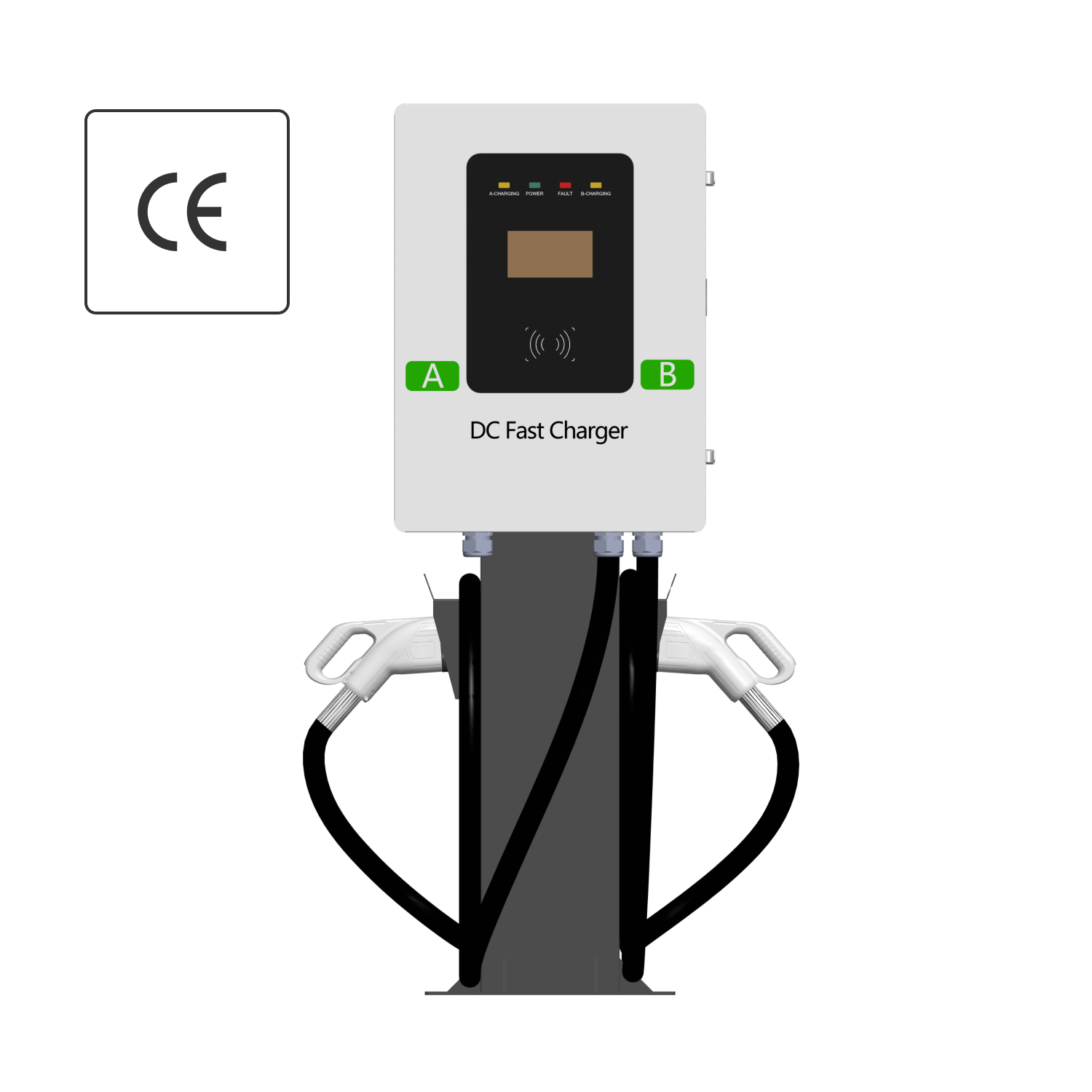

GB/T Column-mounted DC EV Charger 60kW Electric Vehicle OBC Fast Charging Pile Double Gun DC EV Charging Station
- OEM & ODM Service
- IP54
- OCPP 1.6J
- Compatible with most of EVs
Performance and Characteristics
Performance
1) LED Indicator: Different light color indicate different working status of the charger.
2) LCD Screen: Real-time display the charger status and charging data.
3) Emergency Stop Button: In case of emergent issues happen, press the button to cut off charging output for safety.
Characteristics:
4) Dust & Water Proof: IP54 protection grade, workable under severe conditions, no need of extra shelter.
5) First-line brand Power Module: With three First-line brand 20KW State Grid three unified power module inside, the charger is highly integrated and compact.
6) All Direction Protection: Protections from over voltage, under voltage, over load, reverse connection, short circuit, current leakage and over temperature to ensure the product working safely and avoid
accidents effectively.
7) Strong compatibility: compatible with most European standard electric vehicles on the market.
8) Flexible charging pile：Flexible distribution of charging power
parameter
|
Models |
HSDC40K-OSA1 |
HSDC401000 |
HSDC601000 |
|
Input Grid System |
3L+N+PE | ||
|
Input Voltage |
380Vac+20% | ||
|
Frequency |
50/60Hz | ||
|
Output Voltage |
200~1000Vdc |
||
|
Output Current |
Max.125A |
Max.133A |
Max.200A |
|
Output Power |
40kW |
40kW |
60kW |
|
Housing Material |
Cold-rolled sheet |
Galvanized steel |
|
|
Charging Outlet |
Two charging gun (CCS2) |
||
|
Cable Length |
5M | ||
|
Startup Mode |
Swiping card |
||
|
User Interface |
LED indicators, LCD screen | ||
|
LCD |
4.3 inches | 7 inches | 4.3 inches |
|
Interface Language |
English |
English/Chinese |
|
|
Installation Method |
Wall-mounted/Column-mountec |
||
|
Emergency Stop |
Yes |
||
|
Multiple Protection |
Over/under voltage protection, overload protection, short circuit protection over/under temperature protection, surge protection |
||
product Display
