Xupernova DC EV Charger 3-Phase IP54-protected Wall Unit with Smart OCPP2.0.1 and Customizable CCS/GB/T/CHAdeMO Options1
Type 2 EV Electric Car Charger EU IEC 7kw 230v Ac Home Wall Charging Stations with Byd mg Kia

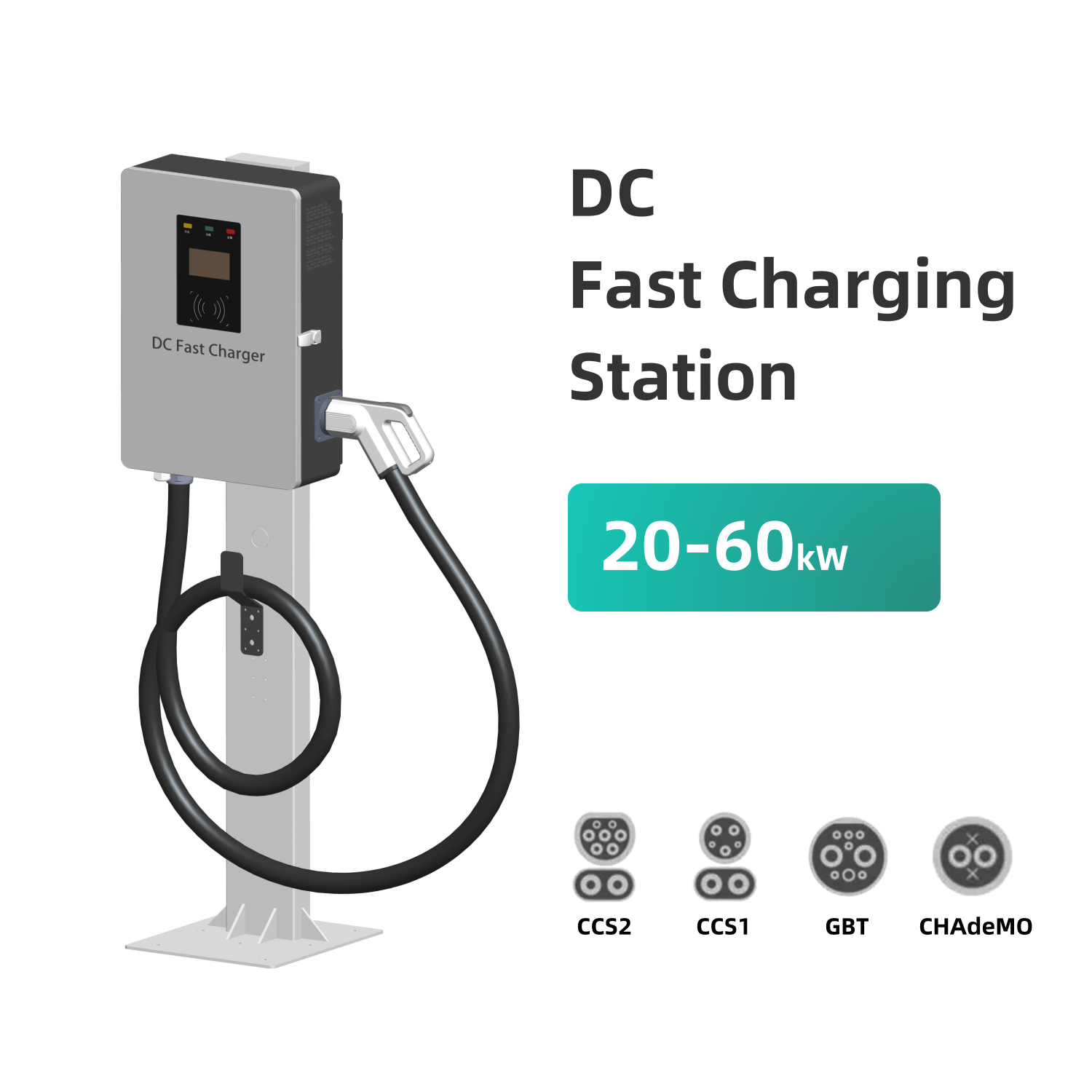

The 20kW/30kW/40kW DC charger is used for electric vehicle’s fast charging, composed of a 4.3-inch touch screen. It’s easy for operation by RFID card. The RFID card is an function to start and stop the charging so as to prevent the theft of electricity by others. The LED indicator on the front panel helps you understand what is happening with the charger by indicating different colors. Using well-known brand 20kW/30kW/40kW power module, the charger design is highly integrated and compact, with protection grade up to IP54, the excellent capacity of water and rust proof, assuring the safe outdoor operation and maintenance. Designed according to Electric Vehicle Charging System Standard EN/IEC 61851-1-2019 and EN/IEC 61851-23:2014.
- OEM & ODM Service
- IP54
- OCPP 1.6J
- Compatible with most of EVs
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Smart Features
- Supports remote upgrades
- Supports app control
- Supports remote diagnostics
Safety Protection
- Temperature monitoring
- 6 safety protection measures
- IP54
Optional Configurations
- Wi-Fi / 4G / Ethernet
- Wall-mount/Floor stand installation
- App operation/RFID/Plug & Play
4 (67)
3 (70)
parameter
|
Models |
HSDC20K-OSA1 |
HSDC30K-OSA1 |
HSDC40K-OSA1 |
|
Input Grid System |
3L+N+PE | ||
|
Input Voltage |
380Vac+20% | ||
|
Frequency |
50/60Hz | ||
|
Output Voltage |
200~1000Vdc |
||
|
Output Current |
Max.60A |
Max.100A |
Max.200A |
|
Output Power |
20kW |
30kW |
40kW |
|
Housing Material |
Cold-rolled sheet |
||
|
Charging Outlet |
One charging gun (CCS2) |
||
|
Cable Length |
4.6M |
5M |
5M |
|
Startup Mode |
Swiping card |
||
|
User Interface |
LED indicators, LCD screen | ||
|
LCD |
4.3 inches | ||
|
Interface Language |
English |
||
|
Installation Method |
Wall-mounted/Column-mountec |
||
|
Emergency Stop |
Yes |
||
|
Multiple Protection |
Over/under voltage protection, overload protection, short circuit protection over/under temperature protection, surge protection |
||
