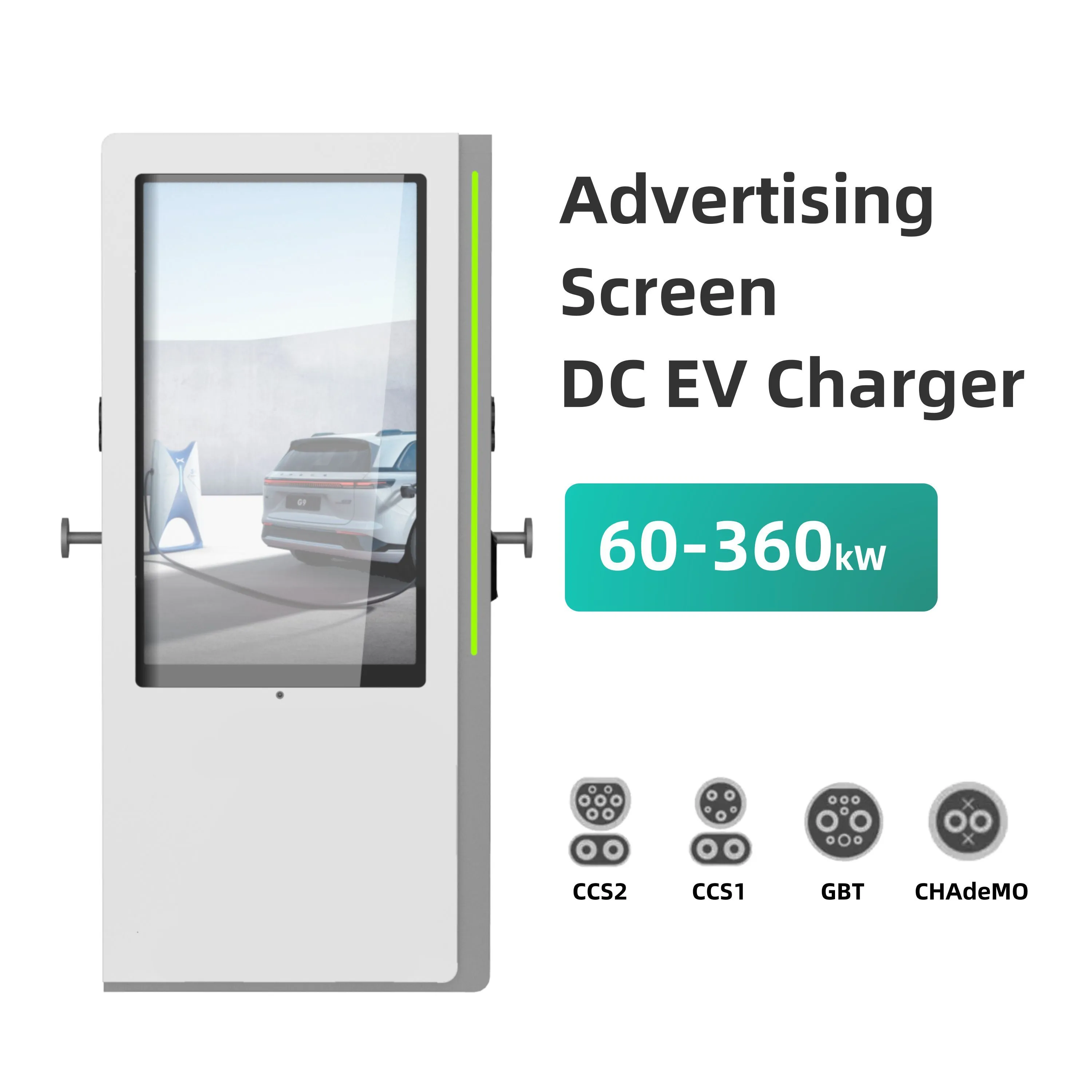

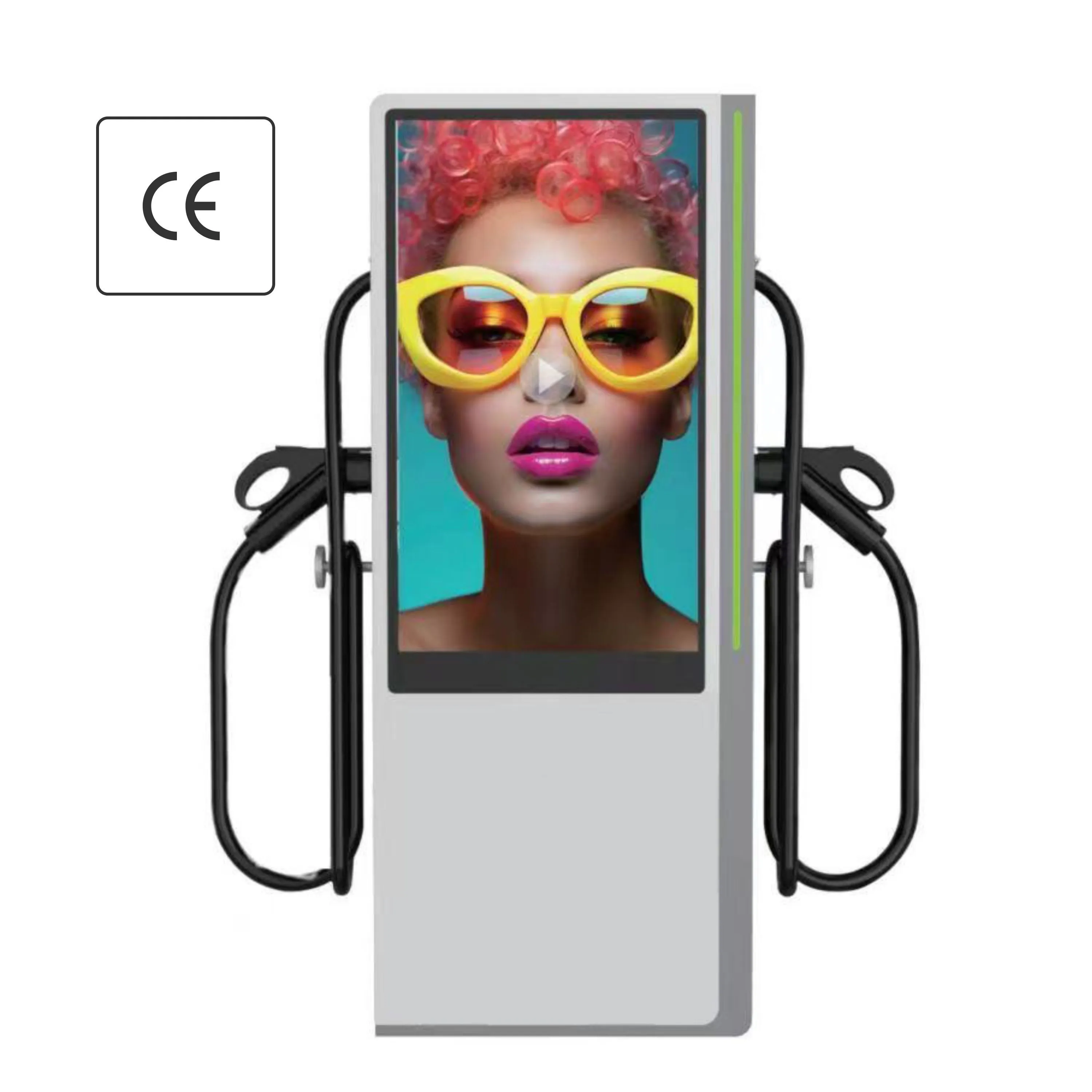

Best Look 60KW 120KW 180KW 240KW 360KW CCS 2 Fast DC EV Charger Station With Big Advertising Screen
The DC EV Charger Station offers versatile power options ranging from 60KW to 360KW with a robust IP55 protection class, ensuring durability and safety. It features multiple charging modes including password start, swipe start, and scan start, alongside advanced safety mechanisms like overvoltage protection, short circuit protection, and lightning protection. The 43-inch high light touch screen and forced air cooling system enhance user experience and operational efficiency.
● Optional CCS1/CCS2/CHAdeMO/GBT standards
● OCPP 1.6/2.01 Json
● IP55 ingress protection(body)
● CE Certified
Features
Minimalistic
- Compact, slimline enclosure
- High energy-saving ECO mode
- Compatible with 60kW~360kW
Intelligent
- Ethernet/4G
- OCPP 1.6/2.01 Json
- Dynamic load balancing
Select
- App operation and RFID
- Intelligent operation by App and cashless payment
- Optional CCS1/CCS2/CHAdeMO/GBT standards
Safety Protection
- Full production
- IP55 ingress protection
- IK10 impact protection
parameter
|
Models |
DC60KW |
DC120KW |
DC180KW |
DC240KW | DC360KW |
|
Rated Power |
60KW |
120KW |
180KW |
240KW |
360KW |
|
Shell Material |
Sheet Metal |
||||
|
AC input voltage |
3P+N+P,AC400V±15% |
||||
|
AC input frequency |
45~65HZ |
||||
|
Output voltage range |
200Vdc-1000Vdc | ||||
|
Installation Method |
Floor-stand Type |
||||
|
Cable Routing |
Bottom Inlet, Bottom Outlet |
||||
|
Cable Length |
5M(Customizable) | ||||
|
Charging Outlets |
Double(CCS1+CCS1) |
||||
|
Double(CCS2+CCS2) |
|||||
|
Double(CHADEMO+CHADEMO) |
|||||
|
Double(GB/T+GB/T) |
|||||
|
Operating temperature |
-25°C to + 50°C |
||||
|
Storage temperature |
-40°C to + 70°C |
||||
|
Connectivity Authorization |
RFID, APP, POS |
||||
|
HMI |
7 Inch LCD Screen |
||||
|
Consumption |
≤2W |
≤2W |
≤2W |
≤2W |
≤2W |
|
Protection Level |
IP55 |
||||
|
Functional design |
Ethernet/RS485/4G Communication（custom） |
||||
|
Communication |
OCPP1.6J (0CPP 2.0 upgradable) |
||||
product Display
