Brand New 32A Type 27KW Onboard EV Charger 22KW AC Charger CE Certification CCS Interface Wall-Mounted Charging Station Factory
- Compatible with 7kW-22kW
- IP55 ingress protection(body)
- OCPP 1.6J
- Wi-Fi / 4G / Ethernet
Features
Smart Features
- Supports remote upgrades
- Supports app control
- Supports remote diagnostics
Safety Protection
- RDC (Type A+DC6mA)
- 6 safety protection measures
- IP55 ingress protection (body)
Optional Configurations
- Wi-Fi / 4G / Ethernet
- Wall-mount/Floor stand installation
- App operation/RFID/Plug & Play
parameter
|
Models |
KWAC-KOEU07T0 |
KWAC-KOEU11T0 |
KWAC-KOEU22T0 |
|
Outlet Options |
AC Type 2 (IEC 62196-2) | ||
|
Input/output current rating |
32A |
16A |
32A |
|
Input/Output Power rating |
7KW |
11KW |
22KW |
|
Input/ouput voltage |
230VAC |
400VAC |
400VAC |
|
Input Frequency |
50Hz |
||
|
Cable Length |
5.0 m or Customized |
||
|
Distribution Systems |
TT, TN system |
||
|
Connector Type |
1P+N+ PE |
3P + N+ PE |
|
|
Protection |
Overcurrent,overvoltage,undervoltage, ground fault integrated surge protection, RDc (TypeA+DC6mA), Over-temperature protection |
||
|
Energy Measure |
Yes |
||
|
Connectivity |
WiFi/Bluetooth/4G/Ethernet |
||
|
Status indication |
LED Status |
||
|
Communiation Protocols |
OCPP 1.6J |
||
|
RFID Reader |
ISO/IEC 14443 A/B Mifare RFlD reader |
||
|
Protection Rating |
IP55 |
||
|
Operating Temperature |
-35°C to +50°C |
||
|
Storage Temperature |
-40°C to +75 °C |
||
|
Mounting |
Wall-mount or pedestal stand |
||
|
Dimension(mm) |
205*110*380mm |
||
|
Net Weight (kg) |
≤4kg |
≤5kg |
≤6kg |
|
Safety Standards |
IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955 |
||

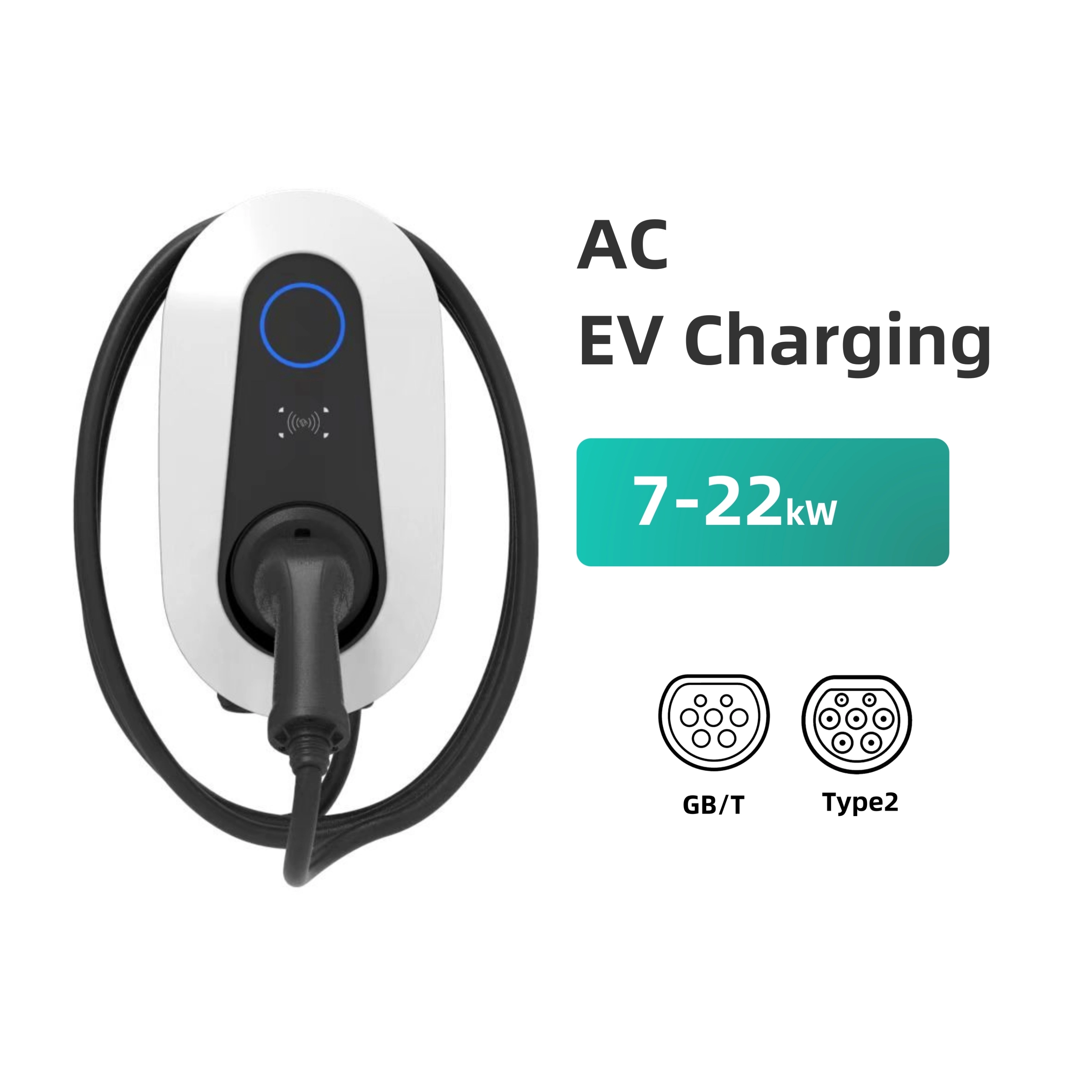

product Display
