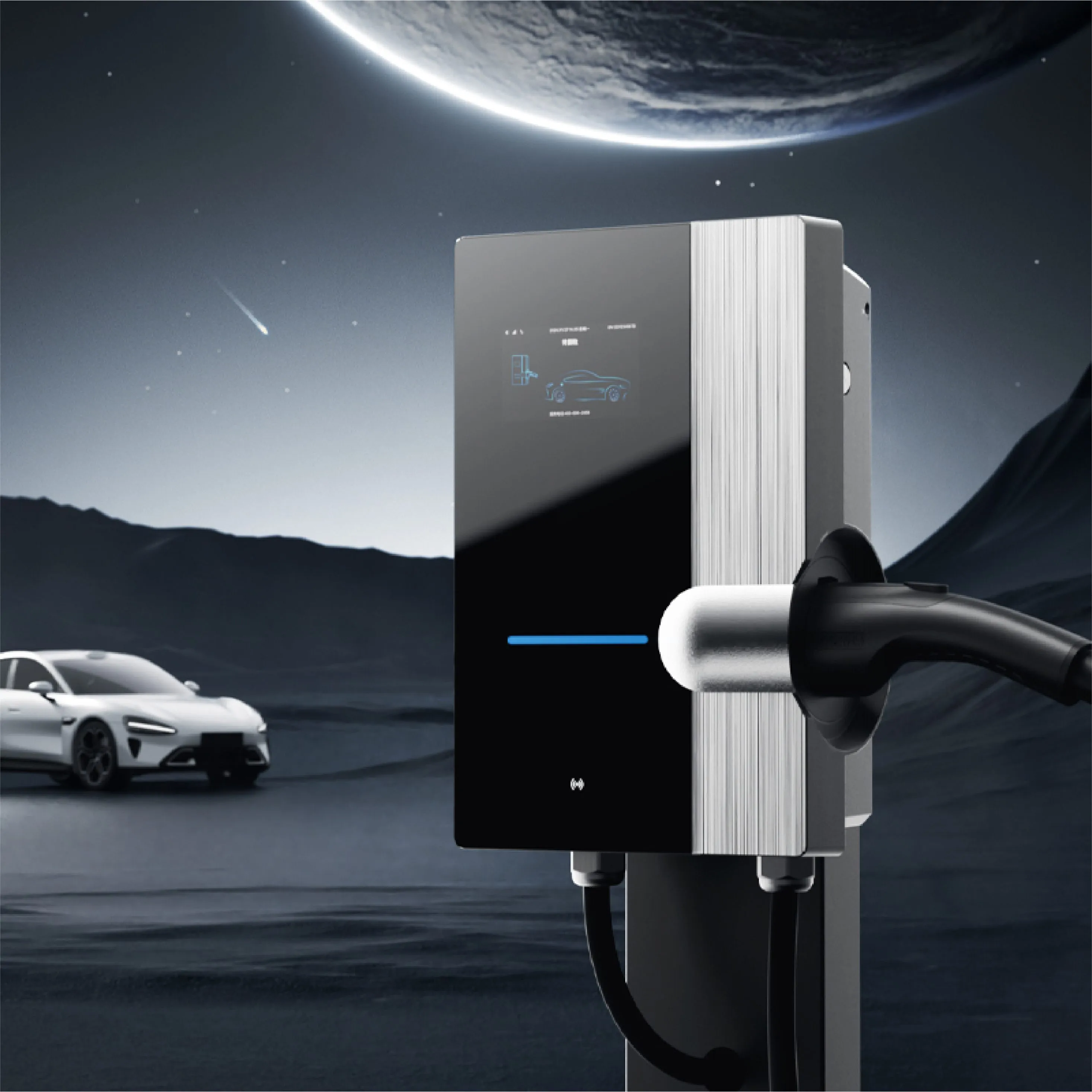

Arctic to Desert EV Charger -30°C to 50°C Operation 7KW 11KW 22KW IP65 IK08 Industrial Grade Charging Station for Electric Car
The AC Charger is a stylish, user-friendly, and intelligent charging solution designed for residential, commercial, and public applications. Equipped with a customizable Type 2 connector, it ensures compatibility with most electric vehicle brands worldwide. It has obtained TUV Mark, CE, CB, UKCA, and other international certifications, guaranteeing safe and reliable charging. The charger supports intelligent load management and photovoltaic input, enabling optimized energy usage and cost savings. Its compact design, IP54 weatherproof protection, and multiple installation options—wall-mounted or pedestal—make it adaptable to various environments. With its smart application integration, installation and operation are effortless, delivering an efficient and future-ready EV charging experience.
- TUV Mark, CE, CB, UKCA certifications ensure reliable operation.
- Supports intelligent load balancing and photovoltaic integration.
- Wall-mounted or pedestal options to suit different sites.
- IP54-rated protection for indoor and outdoor use.
- User-friendly interface with integrated smart applications.
Features
Fast Charging
- 7kW / 11kW / 22kW power options
- Plug & play & scheduled charging
- Real-time LED + App monitoring
- Type 2 (customizable) connector for global EV compatibility
Smart Control
- Bluetooth / Wi-Fi / 4G / Ethernet
- Intelligent load management
- Remote control and monitoring via app
- Backend system integration
- Bluetooth / Wi-Fi / 4G / Ethernet
Safe & Durable
- Full protection
- Operates from -25℃ to +50℃
- Certified by TUV Mark / CE / CB / UKCA for safety and reliability
parameter
|
Power Supply |
Single phase 1P+N+PE
|
Three phase 3P+N+PE | |
|
Rated Voltage |
230V AC | 400V AC | |
|
Rated Power |
7KW |
11KW |
22KW |
|
Rated Current |
32A |
16A |
32A |
|
Frequency |
50Hz | ||
|
Wiring |
hardwired |
||
|
Connector Type |
Type 2 Plug/Type 2 Socket |
||
|
Cable Length |
5m (Customizable) | ||
|
Start Mode |
plug & play,APP RFID Card / QR Code |
||
|
Screen |
4.3'' Screen / 7.0'' Touch Screen | ||
|
Indicator |
LED | ||
|
Connection |
Wi-Fi, Bluetooth, LAN 4G |
||
|
Protocol |
OCPP 1.6-j |
||
|
Protection |
Overvoltage Protection, Undervoltage Protection, Overload Protection, Overtemperature Protection, Grounding Protection, Leakage Protection, Emergency Stop Protection, Lighting Protection Detection | ||
|
Leakage Current Protection |
30mA AC + 6mA DC |
||
|
Altitude |
2000m |
||
|
Storage Temperature |
-40°F - 185°F (-40°C - 85°C) |
||
|
Operating Temperature |
-20°F - 122°F (-30°C - 50°C) |
||
|
Humidity |
95% RH Max, Non-condensing |
||
|
Vibration |
0.5G, No sharp vibration and shock |
||
|
Installation Location |
Indoor or outdoor, well ventilated, no flammable or explosive gases |
||
|
Weight |
case C: 4.9 kg / case B: 2.7 kg |
||
|
Dimensions (H x W x D) |
13 x 8 x 4 in( 388 x 202 x 109 mm ) |
||
|
Installation |
Wall mounted or Column(Column Optional) |
||
|
IP Rating |
IP65(case C)/lP54(case B) |
||
|
Certificate |
CE |
||
