Wallbox 22kw 11kw Type 2 Smart Charging Station 32a Home Evse Type 2 Ev Charger Manufacturer
Unlock efficient, high-speed EV charging with our MODE III Series AC charger — available in 7kW, 11kW, and 22kW variants. Designed for global compatibility and built to last, this wall-mounted charger supports single-phase and three-phase input, with advanced features including smart app control, RFID access, and real-time monitoring via Bluetooth, Ethernet, or Wi-Fi.Ideal for residential, commercial, or fleet use, it’s the perfect balance of performance, safety, and intelligence.
- Fast and efficient charging — up to 22kW
- Durable in extreme environments (-25°C to +50°C)
- IP65 waterproof and IK10 impact resistant
- Smart connectivity via app and remote monitoring
- Certified for CE, FCC, RoHS, ISO compliance
Features
Fast Charging
- 7kW / 11kW / 22kW power options
- Plug & play & scheduled charging
- Real-time LED + App monitoring
Smart Control
- Bluetooth / Wi-Fi / 4G / Ethernet
- Remote control via app
- Backend system integration
- Bluetooth / Wi-Fi / 4G / Ethernet
Safe & Durable
- Full safety protection
- IP65 & IK10 rated
- Operates from -25℃ to +50℃
- Full safety protection
parameter
|
Regional Standard |
SAE Standard
(US version)
|
IEC Standard
(EU version)
|
IEC Standard
(GBT version)
|
|
Voltage |
240Vac±15% | 230Vac±15% (Single phase)/400Vac±15% (Three phase) |
220Vac±15% (Single phase)/380Vac±15% (Three phase) |
|
Power/Amperage |
7KW/32A |
7KW/32A |
7KW/32A |
|
9KW/40A |
11KW/16A |
11KW/16A |
|
|
12KW/48A |
22KW/32A |
22KW/32A |
|
|
Frequency |
50-60Hz |
50-60Hz |
50-60Hz |
|
User Authentication |
RFID (ISO 14443) | ||
|
Network |
LAN, Wi-Fi, Ethernet optional, 4G optional |
||
|
Connectivity |
OCPP 1.6 J |
||
|
Charging Port |
SAE J1772, Type 1, Nacs/Tesla |
IEC 62196-2, Type 2 |
GB/T2023.42 |
|
Security Compliance |
UL2594, UL2231-1/-2 |
IEC 61851-1, IEC 61851-21-2 |
|
|
RCD |
CCID 20 | Type a + DC 6mA | |
|
Multiple protection |
Overvoltage protection, overcurrent protection, leakage protection, overtemperature protection, lightning protection, etc. |
||
|
Housing Material |
ASA |
||
|
Operating Temperature |
-77°F to 122°F |
-25 °C ~ + 50 °C | |
|
Indoor/Outdoor |
NEMA 4 type |
IP65 |
|
|
Relative humidity |
Up to 95% non-condensing |
||
|
Cable length |
5m, 7.5m(optional) |
||
|
Power Support |
Display Screen, Indicator Lights, Card Swipe, Bluetooth/WIFI |
||
|
Protection Functions |
Overcurrent Protection/Overtemperature Protection/Leakage Protection |
||
|
Color |
Black/White |
||
|
Certificate |
CE, RoHS, FCC, ISO |
||

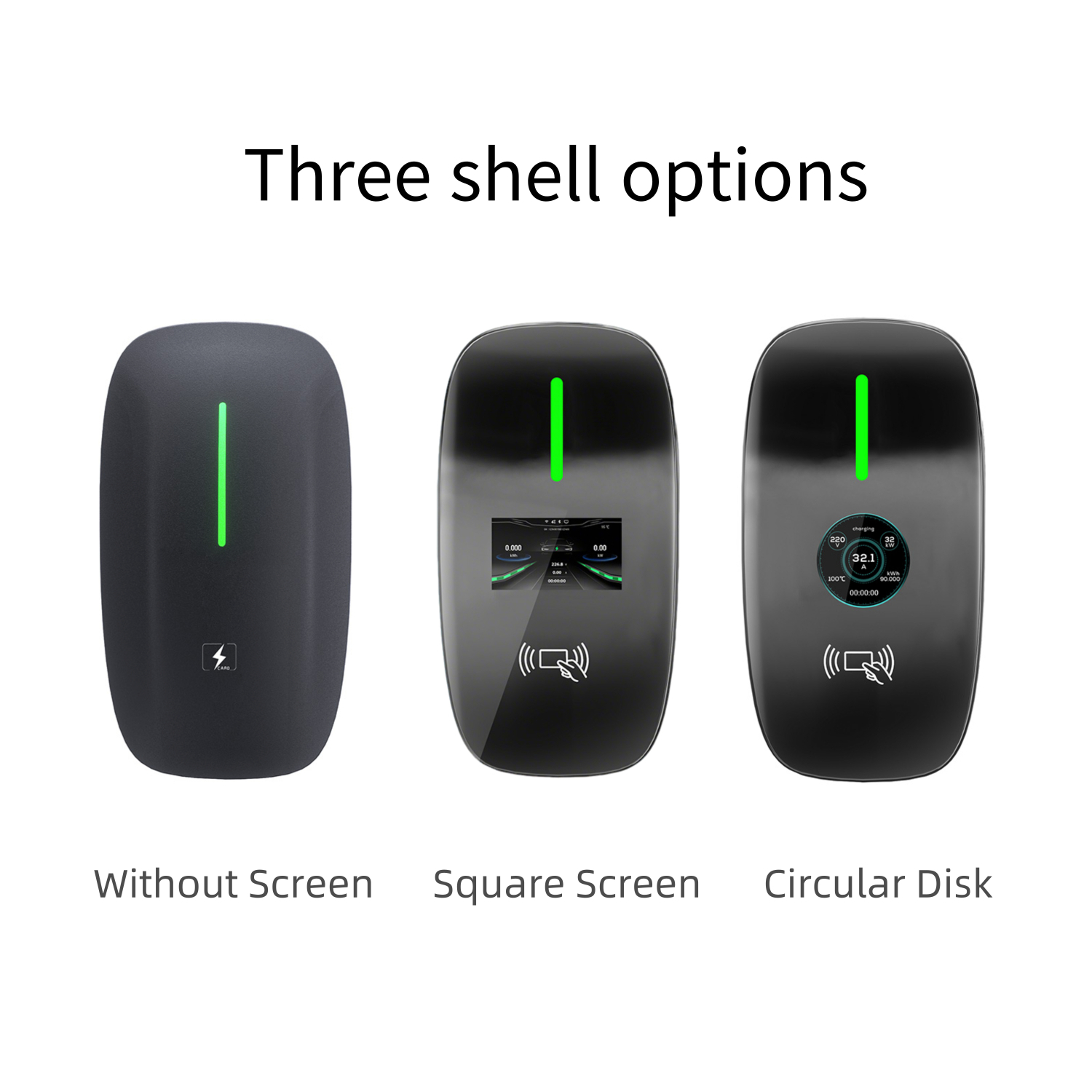

product Display
