Batteries Home Solar Battery Storage System 10kWh All in One Ess Inverter and Lithium Battery
Features
Smart Features
- Dual MPPT tracking for maximum efficiency
- Remote monitoring via cloud platform
- LCD & LED intuitive display
- Dual MPPT tracking for maximum efficiency
Safety Protection
- IP65 ingress protection
- <10ms transfer time for backup loads
- Wide operating temperature range (-30°C to +60°C)
- IP65 ingress protection
Flexible Configurations
- Compatible with Lithium & Lead-acid batteries
- Parallel expansion up to 9 units
- Easy plug-and-play installation
- Compatible with Lithium & Lead-acid batteries
parameter
|
Battery type
|
Lithum/Lead-Acid
|
||||||
|
Input voltage range (V)
|
40-60 | ||||||
|
Max.Charging/Discharging voltage (V)
|
<=60 (Adjustable)
|
||||||
|
Charging strategy for Li-ion battery
|
Self Adaption to BMS |
||||||
|
Max. pv power (W) |
6000 |
7360 |
8000 |
10000 |
12000 |
||
|
Max.Input voltage (V) |
600 |
||||||
|
Start Up Voltage (V) |
70 | ||||||
|
MPP Voltage Range (V) |
ISO/IEC 14443A/B/MIFARE |
||||||
|
Rated Input Voltage (V) |
360 | ||||||
|
Max. Input Current (A) |
16/16 |
||||||
|
Max. Short Circuit Current (A) |
20/20 |
||||||
|
No. of MPPTs/No. Strings Per MPPT |
2/1 |
||||||
|
Rated power (W) |
3000 |
3680 |
4000 |
5000 |
6000 |
||
|
Max. apparent power (VA) |
3300 | 4048 | 4400 | 5500 | 6600 | ||
|
Rated grid frequency (Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
||
|
Max. output current (A) |
14.3 |
17.6 |
19.1 |
23.9 |
28.7 |
||
|
Power factor |
0.8ind-0.8cap |
||||||
|
Dimensions(W*H*D)(mm) |
455*365*182 |
||||||
|
Weight (kg) |
18.4 |
||||||
|
User Interface |
LCD&LED |
||||||
|
PV connection type |
MC4 |
||||||
|
AC connection type |
OT Terminal + Shell |
||||||
|
Battery connection type |
Plug-in |
||||||
|
Cooling |
Natural Cooling |
||||||
|
Communication with meter |
RS485 |
||||||
|
Operating ambient temp (C) |
-30 ~ +60 |
||||||
|
CT connection type |
Plug-in Connector |
||||||
|
Max.operating altitude (m) |
3000 (>3000 Derating) |
||||||
|
protection class |
IP65 |
||||||
|
Night consumption (W)
|
＜5
|
||||||
|
Max. parallel number
|
9 |
||||||
|
Warranty
|
5（10）years
|
||||||
|
Safety
|
IEC 61000-6-1/-3, EN 62920, EN 62109-1/-2, SUD TUV MARK, EN 55011
|
||||||
|
Grid connection standards
|
EN 50549-1&-10/CEI 0-21
|
||||||

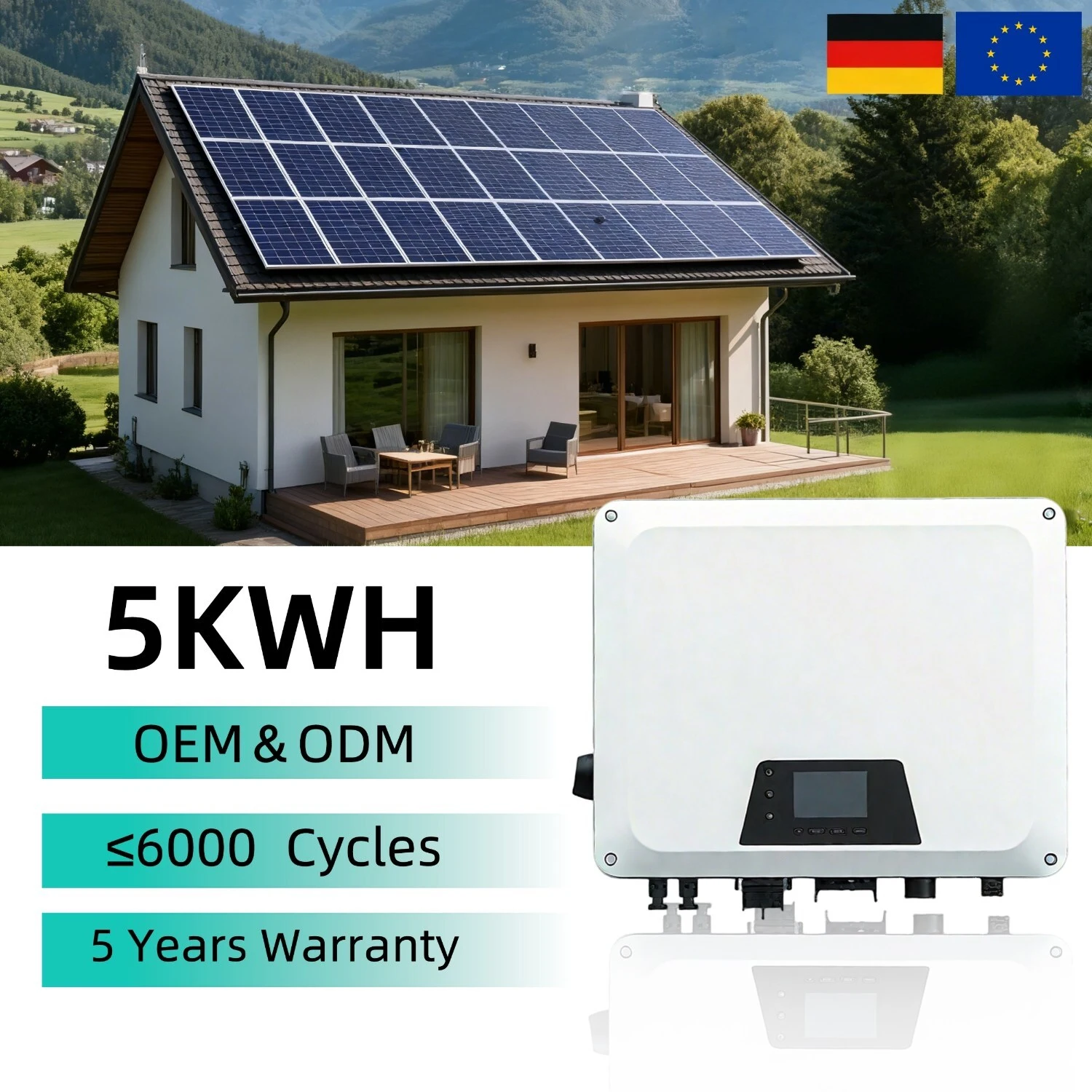

product Display
