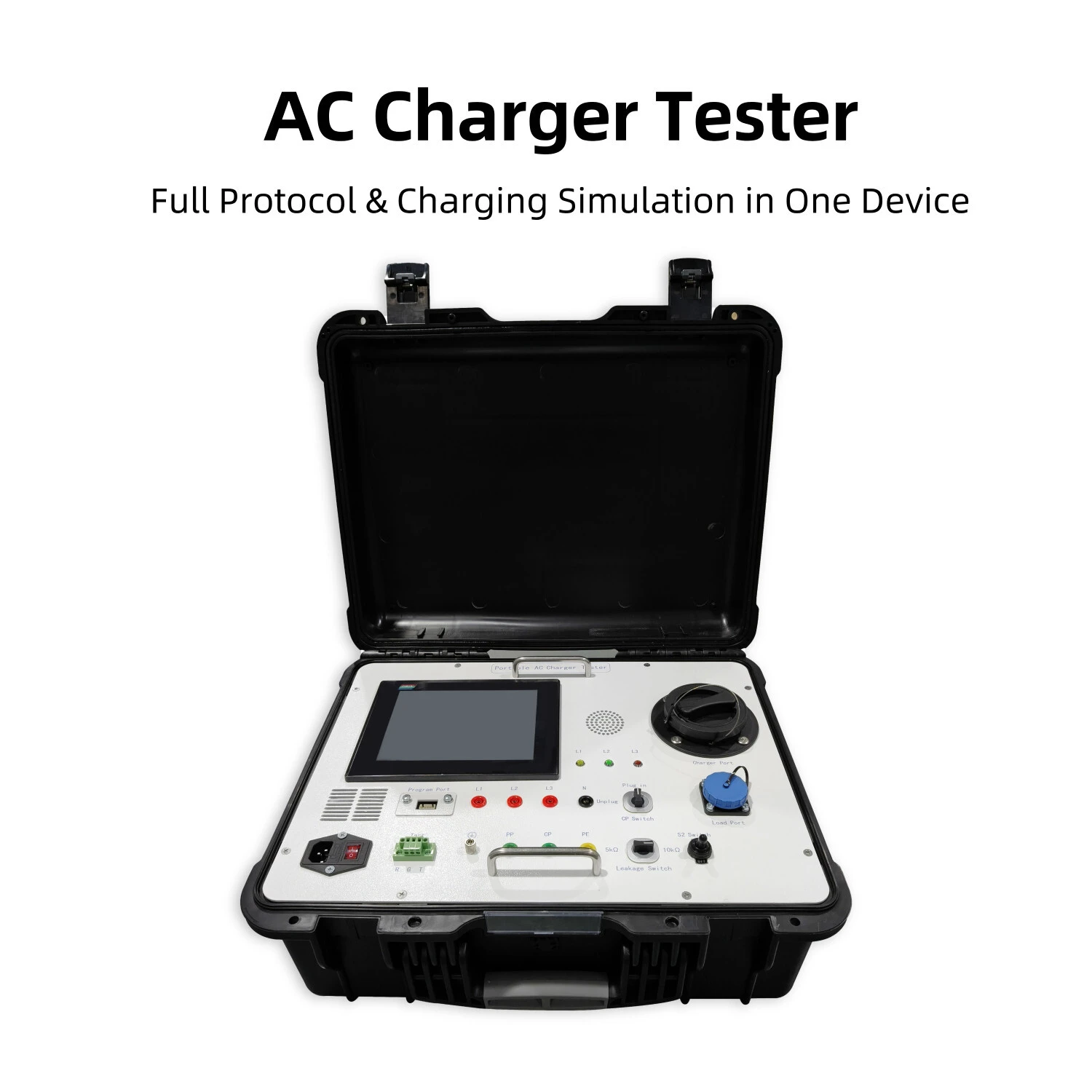

Portable AC EV Charger Tester GBT SAE IEC Type 2 Type 1 EV Charging Stastion Tester 220V 380V AC EV Charger Tester
The Portable AC Charger Test System is designed for commissioning, inspection, functional verification and on-site diagnostics of AC EV chargers.
By simulating real AC charging behavior through CP and PP signal control, the system enables full communication, charging state verification and safety testing without using an actual electric vehicle. This eliminates the complexity, safety risks and inefficiencies associated with vehicle-based testing.
With integrated measurement and fault simulation functions, the system provides a fast, repeatable and reliable solution for AC charger development, production testing and field maintenance.
• Real AC charging simulation without a vehicle
• CP / PP signal control and verification
• Voltage, current and leakage current measurement
• Safety logic and fault condition testing
By simulating real AC charging behavior through CP and PP signal control, the system enables full communication, charging state verification and safety testing without using an actual electric vehicle. This eliminates the complexity, safety risks and inefficiencies associated with vehicle-based testing.
With integrated measurement and fault simulation functions, the system provides a fast, repeatable and reliable solution for AC charger development, production testing and field maintenance.
• Real AC charging simulation without a vehicle
• CP / PP signal control and verification
• Voltage, current and leakage current measurement
• Safety logic and fault condition testing
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Compatibility
Supports standard AC charging control logic
CP / PP signal compliance verification
Single-phase and three-phase AC testing support
Simulation & Intelligence
Real AC charging process simulation
CP / PP state switching and plug-in behavior simulation
No EV or battery required
Stable and repeatable test results
Fault & Safety
Leakage current simulation and detection
Abnormal CP / PP signal condition testing
Charging interruption and safety response verification
Supports protection function validation
Application
AC charger R&D and functional validation
Production line quality inspection
On-site installation and commissioning
Maintenance diagnostics and troubleshooting
AC检测场景4
AC检测场景2
parameter
|
Test system power supply voltage
|
220VAC ±10%
|
|
Measure the voltage input range
|
380V±20%(out of range voltage will damage the test equipment)
|
|
Current measurement range
|
0-40A
|
|
Meter measurement accuracy
|
Class 1.0
|
|
CP voltage measurement range
|
0-12VDC, measurement error <2%
|
|
CP duty cycle measurement range
|
3% to 99%, with an error of less than 1%
|
|
PP resistance measurement range
|
0-1kΩ, measurement error <5%
|
|
Operating temperature
|
-20℃ to 45℃
|
product Display
画板 4 (3)
AC检测场景1
AC检测场景4
AC检测场景3
AC检测场景2
